Description

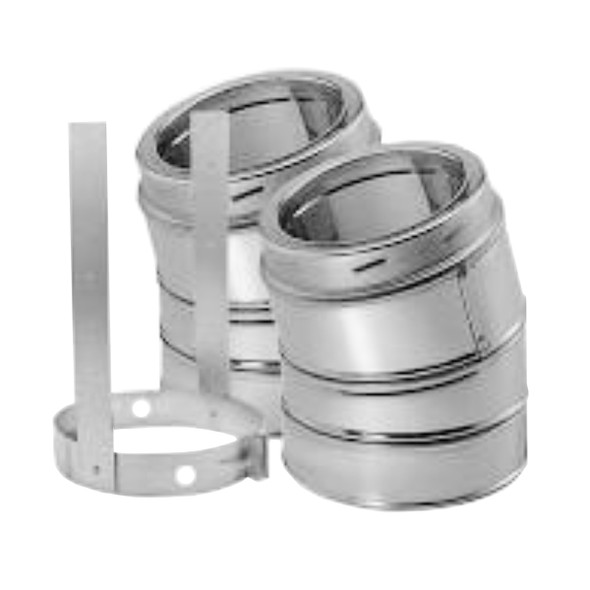

Elbow Straps provide essential support for offset chimney installations by preventing excessive weight on the elbows. Designed to be installed between two elbows, they help distribute the chimney's weight for added stability. Multiple straps may be required depending on the installation. Refer to the installation instructions for proper placement and usage.
DuraTech Addition 5”-8” DuraTech is a double-wall, all-fuel chimney system for use with wood stoves, fireplaces, furnaces, boilers, ranges, water heaters, or other appliances fueled by wood, oil, coal, or gas, and zero-clearance fireplaces that are factory-built. 10”-24” large diameter DuraTech is a 1” wall, all-fuel chimney system for use with wood stoves, fireplaces, furnaces, boilers, ranges, water heaters, or other appliances fueled by wood, oil, coal, or gas.
5”-8” diameter pipe features inner wall of .020” 430 stainless steel. Outer wall options of .016” 430 stainless steel or .021” galvalume steel. A thermal blanket insulation is encased between walls. Stainless steel end rings seal the pipe. DuraTech features light weight insulation, twist-lock fittings, support boxes with factory installed starter sections, elbows with 360° swivel base, select black finish pipe lengths, five-foot length pip
Technical Specifications
View AllCloseAdditional Product Info
- DuraTech Installation Instructions(PDF, 1.7MB)
- DuraTech Adjustable Length Installation Instruction Supplement( PDF, 673KB)
- DuraTech Universal Support Installation Instruction Supplement(PDF, 698KB)
- DuraTech Shroud Instructions(PDF, 434KB)
- DuraTech®: New Chimney Cap Assembly L1510 Installation Instruction Addendum(PDF, 445KB)
- DuraTech Product Brochure(PDF, 1.3MB)
- DuraTech Install Guide(PDF, 1.0MB)
- DuraTech Comparison(PDF, 589KB)
- Woodburning Best Practices(PDF, 391KB)
- Oil Sizing Chart(PDF, 122KB)
- DuraTech 5"-8" Catalog Section(PDF, 5.9MB)
- DuraVent All Products Catalog(PDF, 47.4MB)
- DuraTech® 5”-8” Square Ceiling Support Box w/ Collar(PDF, 70KB)
- Black Paint(PDF, 889KB)
- DuraVent now offering DuraTech Tee Cap(PDF, 458KB)
- DuraTech Square Ceiling Support Box(PDF, 205KB)
- DuraTech Adjustable Parts(PDF, 380KB)
- DuraTech Snow Splitter(PDF, 161KB)
- DuraTech Finishing Collar with Mechanical Connection(PDF, 196KB)
- DuraTech for Oil(PDF, 186KB)
- DuraTech Finishing Collar w/Adapter(PDF, 194KB)
