HY-C Multi-Pack Singe-Flue Caps, 4 Pack

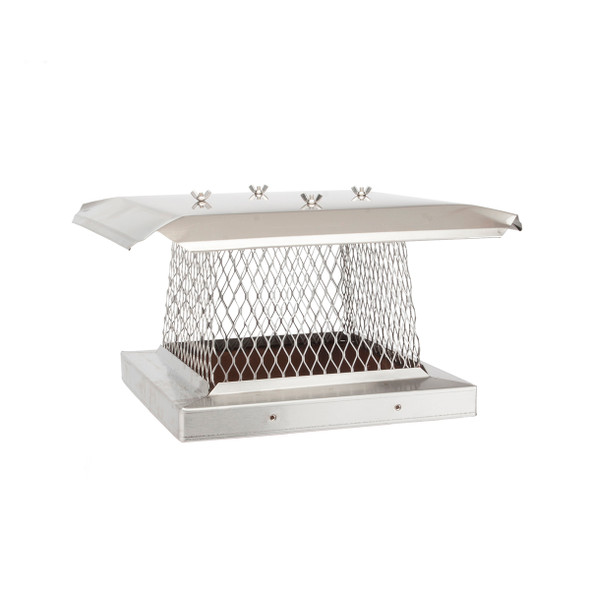

The Stainless Steel Stackable Multi-Pack chimney cover by HY-C Company is constructed of 100% 304 stainless steel and built to withstand the toughest conditions. Ideal for oil, coal or heavy wood burners, or for any application within 25 miles of a saltwater coast. High quality construction includes a 24 gauge stainless steel hood with scalloped corners and roll-formed edges, 18 gauge expanded stainless steel mesh and 16 gauge stainless steel base for extra strength. The four-pack carton saves storage space and shipping expenses, as the chimney covers are nested with removable hoods. Using pointed stainless steel slotted hex-head bolts, the side mounting attachment design provides a secure fit to a masonry flue tile. Lifetime limited warranty.
Features
■ 100% 304 Stainless Steel
■ HY-C’s Lifetime Limited Warranty
■ Space Saving Design and Package
■ Easy Assembly, Lids Attach in Seconds with Wing Nuts (included) and Weld Bolts to Prevent Stripping
■ Arrests Sparks and Reduces Certain Downdrafts
■ Removable 24-Gauge Hood with Roll-Formed Edges
■ Ships Nested in a 4-pack Carton
■ 16-Gauge Stainless Steel Base for Extra Strength
■ 18-Gauge 3/4” Expanded Stainless Steel Mesh
■ Side Bolt-on Mounting with Pointed Stainless Steel Slotted Hex-head Bolts with Weld Nuts to Prevent Stripping
View AllClose
The Stainless Steel Stackable Multi-Pack chimney cover by HY-C Company is constructed of 100% 304 stainless steel and built to withstand the toughest conditions. Ideal for oil, coal or heavy wood burners, or for any application within 25 miles of a saltwater coast. High quality construction includes a 24 gauge stainless steel hood with scalloped corners and roll-formed edges, 18 gauge expanded stainless steel mesh and 16 gauge stainless steel base for extra strength. The four-pack carton saves storage space and shipping expenses, as the chimney covers are nested with removable hoods. Using pointed stainless steel slotted hex-head bolts, the side mounting attachment design provides a secure fit to a masonry flue tile. Lifetime limited warranty.
Features
■ 100% 304 Stainless Steel
■ HY-C’s Lifetime Limited Warranty
■ Space Saving Design and Package
■ Easy Assembly, Lids Attach in Seconds with Wing Nuts (included) and Weld Bolts to Prevent Stripping
■ Arrests Sparks and Reduces Certain Downdrafts
■ Removable 24-Gauge Hood with Roll-Formed Edges
■ Ships Nested in a 4-pack Carton
■ 16-Gauge Stainless Steel Base for Extra Strength
■ 18-Gauge 3/4” Expanded Stainless Steel Mesh
■ Side Bolt-on Mounting with Pointed Stainless Steel Slotted Hex-head Bolts with Weld Nuts to Prevent Stripping
HY-C Multi-Pack Singe-Flue Caps Sizing:
| LINDEMANN | MPN | OUTSIDE TILE | FITS OUTSIDE TILE | CARTON | APPROX. LBS. |
| NUMBER | NUMBER | SIZE (IN INCHES) | DIMENSION (IN INCHES) | PACK | STAINLESS |
| 150699 | MPSS99 | 9 x 9 | 7 1/2 x 7 1/2 to 9 1/2 x 9 1/2 | 4 | 22 |
| 150693 | MPSS913 | 9 x 13 | 7 1/2 x 11 1/2 to 9 1/2 x 13 1/2 | 4 | 27 |
| 150698 | MPSS918 | 9 x 18 | 7 1/2 x 16 1/2 to 9 1/4 x 18 1/4 | 4 | 34 |
| 150622 | MPSS1212 | 12 x 12 | 10 1/2 x 10 1/2 to 12 1/2 x 12 1/2 | 4 | 33 |
| 150633 | MPSS1313 | 13 x 13 | 11 1/2 x 11 1/2 to 13 1/2 x 13 1/2 | 4 | 34 |
| 150638 | MPSS1318 | 13 x 18 | 11 1/2 x 16 1/2 to 13 1/4 x 18 1/4 | 4 | 45 |
