Description

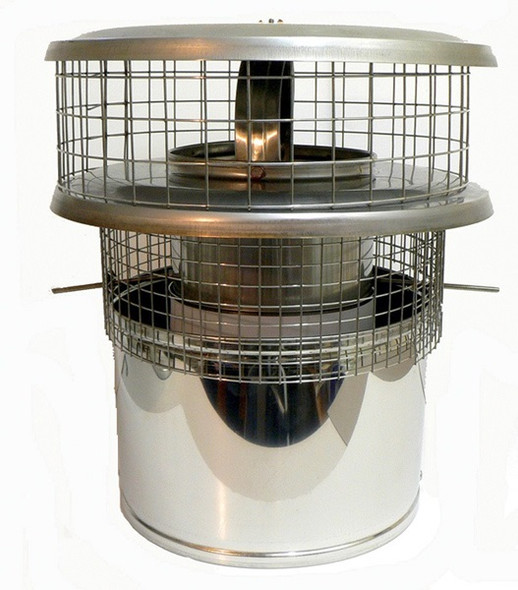

The WeatherShield WSA Chimney Cap is a universal, solid pack, factory-built chimney cap used for round, single wall, Class “A”, and Type B gas vent chimney pipe. This cap is constructed of 26 gauge, 304 stainless steel and fits into pipe easily.
WeatherShield Chimney Caps are primarily used to keep rain, snow, animals, leaves, and other debris from entering the chimney! The WeatherShield WSA Chimney Cap can also be used for masonry chimneys when paired with a masonry adapter (sold separately). This cap comes standard with removable lid and 1”, clog-resistant mesh screen, but is available with a 1/2” mesh screen. The WeatherShield WSA Chimney Cap is made in the USA, and features a limited lifetime warranty.
(Features removable lid and available with 1/2" California mesh.)
WeatherShield WSA Chimney Cap Features:
- Universal, Stainless Steel Cap for Single Wall, Factory Built Chimneys
- 26 Gauge, 304 Stainless Steel
- Two Collars Prevent Moisture Entry
- Protects Against Animals, Debris, and Wet Conditions
- Comes Standard with Removable Lid & 1", Clog-Resistant Mesh Screen
- Made in the USA & Features Limited Lifetime Warranty
| MODEL# | MODEL# | INSIDE FLUE | MAXIMUM | SHIPPING | STANDARD | |
| (1" SCREEN | (1/2" SCREEN | DIAMETER | DIAMETER | WEIGHT | LID SIZE | |
| OPENING*) | OPENING*) | (INCHES) | (INCHES) | (POUNDS) | (Inches) | |
| WSA-3 | WSA-3-S5 | 3 | 8 | 2 | 13 | |
| WSA-4 | WSA-4-S5 | 4 | 8 | 2 | 13 | |
| WSA-5 | WSA-5-S5 | 5 | 13 | 3 | 13 | |
| WSA-6 | WSA-6-S5 | 6 | 13 | 3 | 13 | |
| WSA-7 | WSA-7-S5 | 7 | 13 | 3 | 13 | |
| WSA-8 | WSA-8-S5 | 8 | 13 | 3 | 13 | |
| WSA-9 | WSA-9-S5 | 9 | 16 | 4 | 13 | |
| WSA 9.5 | WSA 9.5-S5 | 9.5 | 16 | 4 | 13 | |
| WSA-10 | WSA-10-S5 | 10 | 16 | 4 | 16 | |
| WSA-11 | WSA-11-S5 | 11 | 19 | 7 | 19 | |
| WSA 11.5 | WSA 11.5-S5 | 11.5 | 19 | 7 | 19 | |
| WSA-12 | WSA-12-S5 | 12 | 19 | 7 | 19 | |
| WSA-13 | WSA-13-S5 | 13 | 19 | 7 | 19 | |
| WSA-14 | WSA-14-S5 | 14 | 19 | 7 | 19 | |
| WSA-15 | WSA-15-S5 | 15 | 23 | 8 | 23 | |
| WSA-16 | WSA-16-S5 | 16 | 23 | 8 | 23 | |
| WSA-17 | WSA-17-S5 | 17 | 23 | 8 | 23 | |
| WSA-18 | WSA-18-S5 | 18 | 23 | 8 | 23 | |
| WSA-20 | WSA-20-S5 | 20 | 23 | 8 | 23 | |
| SIZES : Custom sizes available up to 48". Call for price and specific requirements. | ||||||
| CHIMNEY TYPES: Single wall, solid pack insulated, Class A, B-vent, and square or rectangular masonry | ||||||
| chimneys using ICP masonry adapter. | ||||||
| SCREENS: Available as noted above in 1" and 1/2" mesh openings. Check local regulations for what is | ||||||
| required in your area. | ||||||
| * Nominal dimension | ||||||
